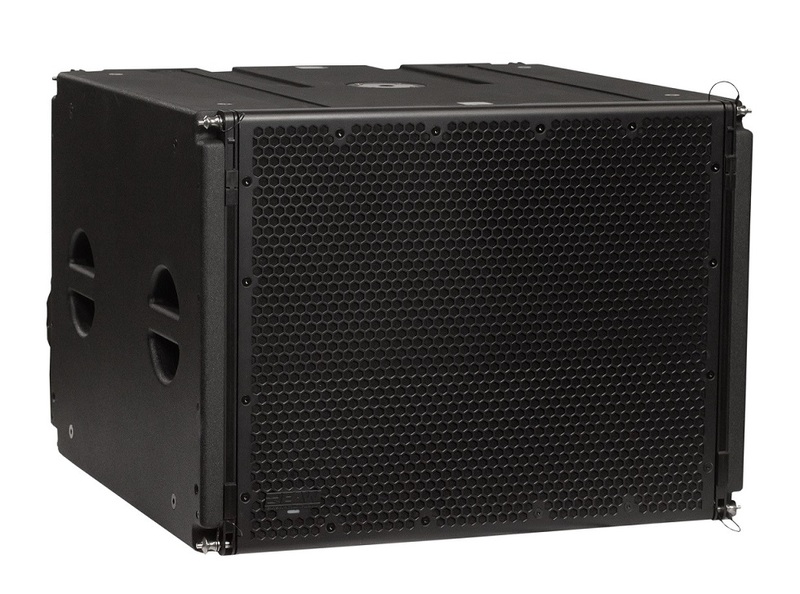

EAW SBX118F

The SBX118F is a high output, mid-size subwoofer system designed to provide low frequency extension for NTX210L systems. SBX118F use of a 4-in voice coil ensures the best sonic performance, meeting expectations for venues of all sizes.
SBX products are designed around transducers normally found in more expensive solutions. With NTX210L and SBX118F, each module can wirelessly communicate with it’s neighbor utilizing IR sensors on the top and bottom (both in the front and rear) of each cabinet. Arrayed elements are aware of their relative location and configuration, which greatly reduces set up time, tuning time, and opportunities for misidentification of cabinets while making DSP adjustments.
SBX118F's can be deployed in multiple configurations. They may be flown in the same array with NTX210L utlizing the supported flybar and transition bar, or simply flown with the NTX210L flybar in a subwoofer array. SBX118F supports ground stack operation of NTX with flybar locating pins providing safe operation at any splay angle, and includes pole mounts on it's top and side surfaces for maximum flexibility.

• Frequency Response: 25Hz–120Hz
• Max SPL: 135dB (Half Space)
• Operating Mode: Single Amp VLF
• Subsystem: 1×18″ cone, 4″ VC Vented
• Power Handling: 2500W
• Connections: AC Mains (nominal) Connector: 2x Neutrik PowerCON TRUE1 TOP, Ethernet/Dante, XLR/Analog
• Dimensions: 533 x 720 x 708mm
• Weight: 59,4 kg
