K&M 19440

Speaker Wall / Ceiling Mount

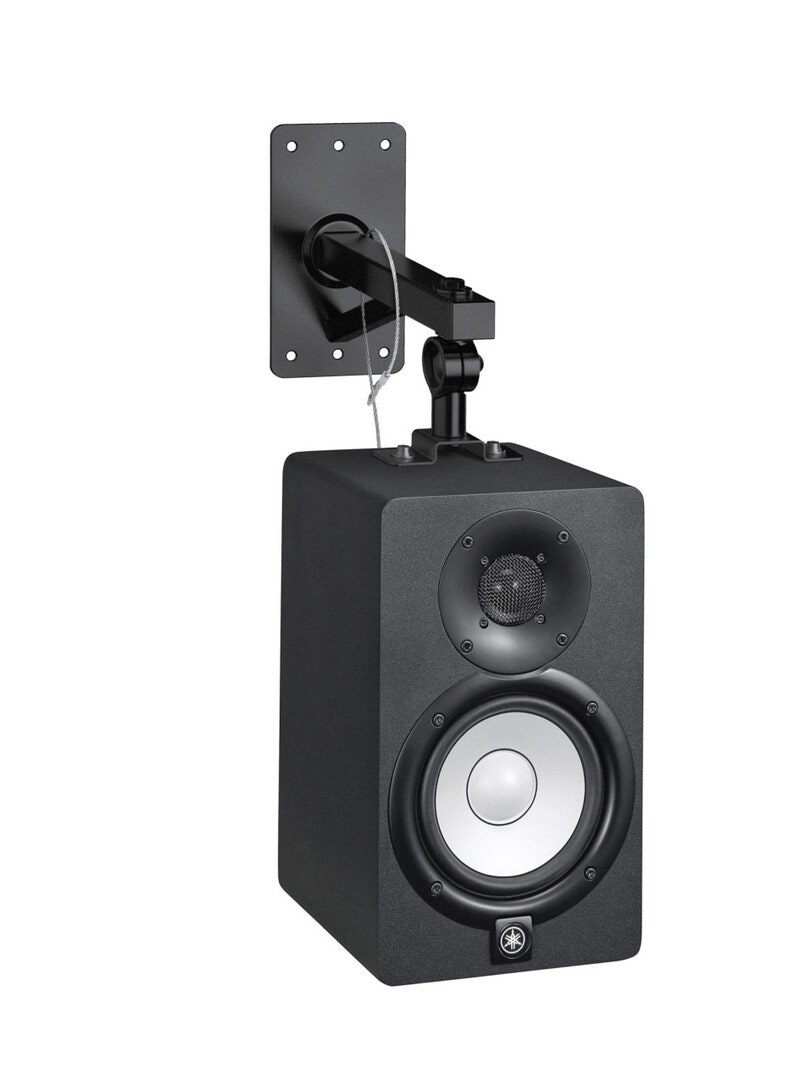

This robust wall and ceiling mount provides a secure and flexible solution for installing compatible loudspeakers in professional audio installations. Its adjustable design allows precise positioning and aiming of speakers for optimal sound coverage in conference rooms, retail spaces, restaurants, educational facilities, studios, and other commercial environments.

The toothed joint mechanism with carriage bolt provides secure locking and easy adjustment of both tilt and orientation. For additional installation safety, a steel safety cable is included as standard.

Features

• Suitable for wall and ceiling mounting
• 360° swivel adjustment
• Tilt adjustment from -45° to +45°
• Secure toothed joint with carriage bolt
• Steel safety cable included
• Heavy-duty steel construction
• Black finish for discreet installations
• Direct fit for selected Yamaha loudspeakers

Compatibility

Direct fit for the following Yamaha models:

• Yamaha HS5I
• Yamaha VXS5
• Yamaha MSP3A
• Yamaha MS101-4

Flexible Positioning

The mount provides precise speaker alignment with full 360-degree swivel adjustment and a tilt range of ±45 degrees. This makes it easy to optimize sound coverage regardless of whether the speaker is installed on a wall or ceiling.

Specifications

• Material: Steel
• Finish: Black
• Maximum Load Capacity: 6 kg
• Tilt Range: -45° to +45°
• Swivel Range: 360°
• Wall Clearance: 180 mm
• Wall Plate Dimensions: 170 × 95 mm
• Bearing Plate Dimensions: 90 × 35 mm
• Hole Spacing: 60 – 70 mm
• Mounting: Wall or ceiling
• Weight: 1.06 kg
• EAN: 4016842123483
• Steel safety cable included
