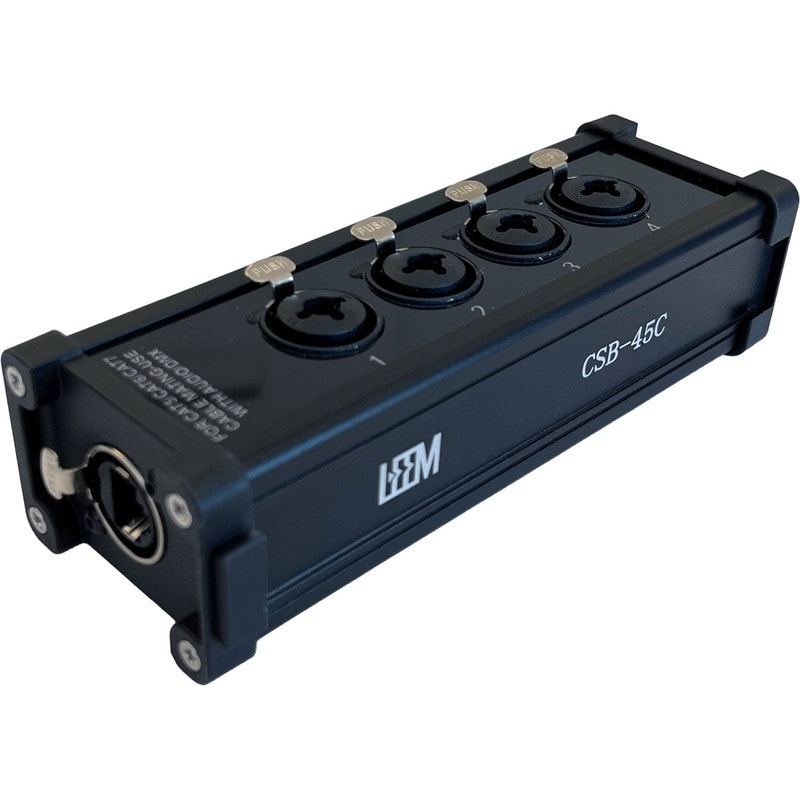

AMP CSB-45C - CAT Break Out Box Combo

 XLR Combo to CAT Breakout Box - CSB-45C

The CSB-45 series is designed for simple, lossless audio signal transmission. It supports the transmission of 4-channel audio signals through a single CAT cable and enables phantom power pass-through. The series is capable of transmitting AES/EBU and DMX signals over distances of up to 100m, with impedance optimized for digital signal integrity. Existing STP cable infrastructures can be utilized, or new installations can be upgraded by selecting higher-category cables for expanded signal transmission.

• 4-XLR signal lines down a single shielded CAT cable
• Transmits 4ch Balanced analog audio or AES/EBU digital audio
• Can pass phantom power and DMX for lighting
• Uses the analog conductors in any shielded Cat 5 or Cat 6 cable
• Analog all the way, with no digital conversion
• Constructed of durable anodized aluminum housing
• Works within a building's existing cable infrastructure

Specifications

• Connection: 4CH
• Input Connector: 4 x XLR Combo
• Output connector: 1 x Ethercon male
• Cable: Shielded Cat5, Cat6, Cat7
• Housing: Anodized alumimum
